A 510 thread is a common threaded connection format used between parts of vape hardware, especially a cartridge and a battery.[1] A CORESTA technical report describes the connection as approximately 7 mm in diameter with a 0.5 mm thread pitch.[1] Thread pitch is the distance from one thread ridge to the next.
That description identifies a connector family. It does not prove that every 510 cartridge will work correctly with every 510 battery.[2] Complete fit can also depend on contact, physical clearance, voltage, resistance, airflow, supplier quality control, documentation, and product-specific test evidence.[2]
The threaded connection

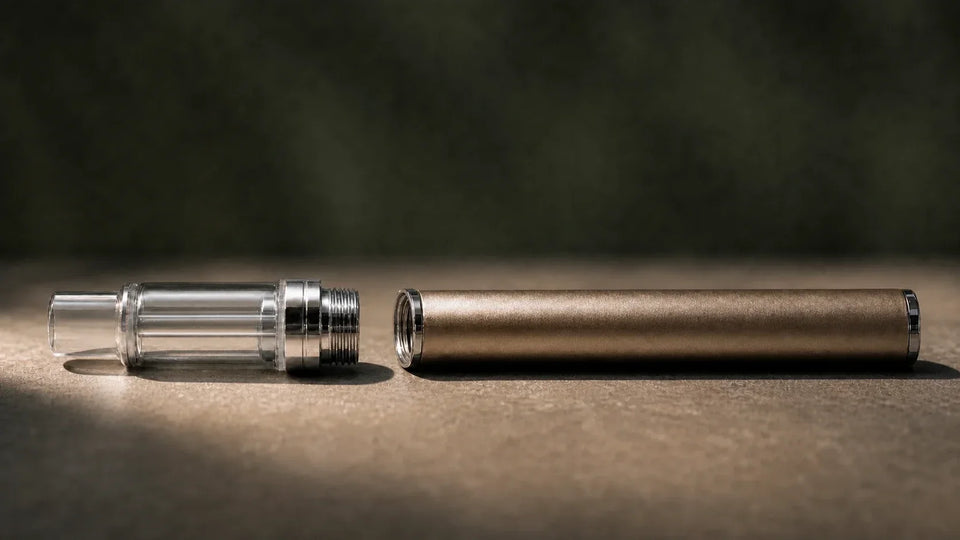

The label describes the threaded connection where two hardware parts meet. On a typical detachable format, the cartridge has one side of the connection and the battery has the matching side. The threads help hold the parts together, while the contact points allow the circuit to connect.

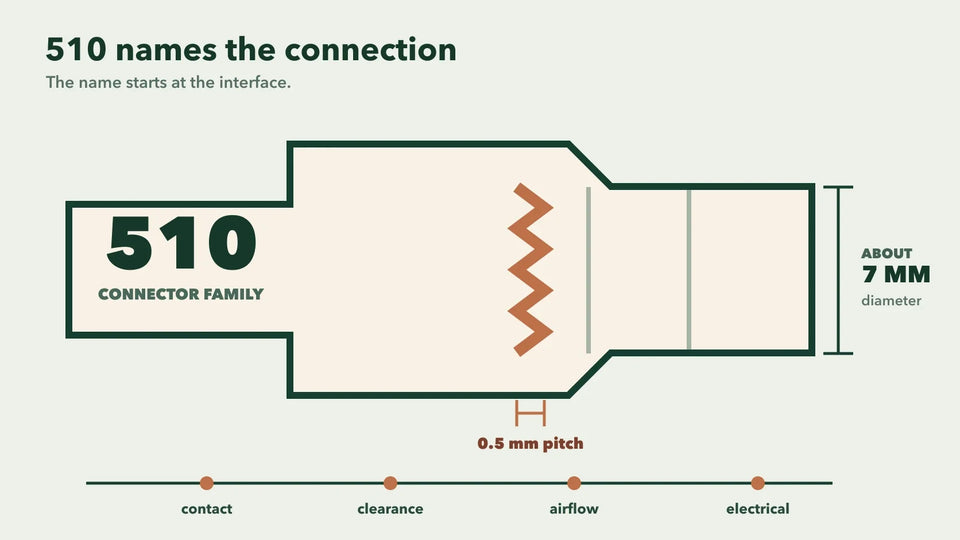

The CORESTA dimensions give the term a useful technical anchor:
- Approximately 7 mm diameter: the size of the threaded connection across its width.[1]
- 0.5 mm thread pitch: the distance from one thread ridge to the next.[1]
These dimensions explain the connection format. They are more useful than an unsupported story about where the name came from. “510” is an established industry term, but the name itself should not be expanded into an origin claim that lacks reliable evidence.
For a buyer, the practical meaning is simple: a 510 label helps you identify where to start a fit check. It is not the end of that check.
Why 510 does not mean universal compatibility
Two components can carry the same connector label and still differ in ways that matter. A threaded part may attach while another requirement remains unresolved. That is why “it screws on” and “the complete system is matched” are not the same statement.
The 510 name alone does not answer all of these questions:
| Fit question | What still needs verification |
|---|---|
| Mechanical connection | Do the parts seat correctly without unwanted gaps or interference? |
| Electrical contact | Do the contact points meet as intended in the assembled product? |
| Voltage | What exact voltage behavior does the battery provide?[2] |
| Resistance | What resistance does the connected cartridge or coil specify or measure? |
| Airflow | Does the assembled geometry leave the intended airflow path open? |
| Dimensions around the thread | Is there enough clearance for the cartridge base, body, collar, or surrounding housing? |
| Documentation | Does the current supplier or maker document the parts as a supported combination? |
| Test evidence | Has the actual combination been evaluated under the buyer's product conditions? |
This is why a universal statement such as “all 510 cartridges fit all 510 batteries” is too broad. The thread identifies one part of the interface. It cannot certify the entire assembly.
1. Check the physical fit beyond the threads
Start with the parts that can be confirmed from a drawing, sample, or dimensional record. Thread format matters, but the body around the thread matters too. Cartridge diameter, base shape, contact position, collar height, and surrounding battery housing can affect whether the parts seat as intended.
A supplier drawing should identify the relevant dimensions for the specific cartridge or battery, not merely state “510.” If a drawing and a physical sample disagree, the difference needs to be resolved before the combination is treated as confirmed.
This is a specification question, not a repair instruction. The goal is to verify the designed interface before an order, not to modify a component until it appears to fit.
2. Confirm the electrical contact
Electrical contact is the point where the connected parts transfer power. A shared thread family does not by itself show that the contact position, contact travel, and assembled connection behave as intended.
The buyer therefore needs evidence for the complete connected pair. That may include the maker's supported-combination documentation, controlled sample evaluation, and a clear record of the exact models tested. A result from a different cartridge, battery, or supplier should not automatically be carried over.
The electrical check also leads to two companion specifications: voltage and resistance. Those values cannot be inferred from the word “510.” They must come from the exact products and test record.
3. Read voltage and resistance together
The connector name does not determine the battery's voltage behavior or the cartridge's resistance. Two 510 batteries may provide different electrical behavior, and two 510 cartridges may use different coil or circuit specifications.
No voltage or resistance value is universally better. Compare both values for the proposed cartridge-and-battery pair. If the documentation is incomplete, ask for the missing values and the product-specific evidence used to support the match.[2]
Do not turn a connector label into a performance prediction. The same 510 family can appear across products with different internal designs, control logic, materials, and intended conditions.
4. Include airflow in the fit question
Airflow is another part of the assembled system. Threads can connect while a surrounding surface, collar, or housing changes an air path. The word “510” does not prove that the final airflow geometry is open, restricted, or appropriate for a particular product.
The right question is not “Does 510 have good airflow?” There is no single airflow result for every product in the connector family. The right question is “What airflow path does this exact assembled combination use, and what evidence shows that it remains as designed?”
That evidence may come from the maker's drawing and product-specific test record. It should name the actual parts evaluated.
5. Supplier records belong in the decision
A standardized-looking label does not make all suppliers or production lots identical. Material choice, dimensional control, contact consistency, assembly, inspection, and lot-to-lot variation can differ.
For a buyer, supplier quality control is therefore a separate question from connector identity. Useful evidence can include:
- a drawing and revision for the specific cartridge or battery;
- defined inspection points for the connection and surrounding dimensions;
- a record of the cartridge and battery models evaluated together;
- sample or pilot-lot results under the intended product conditions; and
- a process for handling a change in dimensions, materials, or supplier.
This list does not guarantee compatibility. It shows the kind of product-specific record needed before a compatibility claim becomes more than an assumption.
Two hardware structures
A 510 format and an all-in-one, or AIO, format can be compared at the structure level.
- Detachable 510 structure: the cartridge and battery are separate parts connected through the threaded interface.
- AIO structure: the main hardware is integrated into one assembled unit and has no detachable 510 connection.
That distinction explains how the products are organized. It does not establish which is better. The appropriate structure depends on the buyer's product design, supply plan, filling and packaging process, evidence, and other requirements.
It would also be wrong to say that one structure is always safer, more reliable, less likely to leak, or more compatible with a material. Those outcomes require evidence for the exact product, not a conclusion drawn from the format name.
Five records to request
When a specification says “510,” turn that one label into a short evidence request:
- Which exact cartridge and battery model numbers were evaluated together?
- What drawings show the thread, contact position, surrounding clearance, and airflow path?
- What exact voltage and resistance values apply to the tested combination?
- What supplier quality-control checks cover the connection and related dimensions?
- What product-specific test data supports the proposed combination under the buyer's conditions?[2]
The final question is important because a match should be judged with the actual product conditions. A generic result from a different model, material, or assembly is not the same evidence.
For buyers who have moved from the definition to comparing empty hardware, GreenDeagle's empty disposable vape pen page is the relevant commercial path. That page does not replace the fit check, and this definition article does not certify any cartridge-and-battery combination.
Claims left open by the label
A 510 label does not prove:
- universal cartridge-and-battery compatibility;
- a particular voltage or resistance match;
- a particular airflow result;
- suitability for a specific oil or other material;
- leak resistance, output, flavor, reliability, or battery life;
- supplier quality, regulatory compliance, or safety; or
- that a result from one model applies to another.
Each of those conclusions needs the evidence that fits the question. The connector label cannot carry claims about the whole product.
Buyer questions
Does 510 mean a cartridge will fit any 510 battery?
No. The shared label identifies the connection family. Complete fit still depends on contact, surrounding dimensions, voltage, resistance, airflow, documentation, quality control, and evidence for the actual pair.[2]
Does the 510 name rate performance?[2]
No. It does not rate output, leak resistance, quality, reliability, or safety.[2] Those are separate product claims and need evidence that directly supports them.
Is 510 better than an AIO structure?
No structure is universally better. A 510 format uses a detachable threaded connection, while an AIO integrates the main hardware. Select the structure from product requirements and test evidence, not from a format label alone.[2]
Practical rule for buyers
A 510 thread is a common vape-hardware connection described as approximately 7 mm in diameter[1] with a 0.5 mm thread pitch.[1] It identifies the connector family and helps a buyer begin a parts review.
It does not mean every 510 cartridge and every 510 battery are a complete match. Confirm the exact physical connection, contact, voltage, resistance, airflow, maker documentation, supplier quality control, and product-specific test evidence before treating a combination as supported.
