Variable voltage means vape hardware offers more than one selectable voltage level.[1] A buyer should check the actual values. Voltage is an electrical input, not a direct reading of temperature, vapor output, oil compatibility, quality, or safety.[1]
Do not ask only whether variable voltage makes a product better. Ask which voltage levels are available, which resistance and control system they use, and what product-specific test evidence supports the proposed match.[1]
What voltage describes
Voltage is the electrical potential difference that helps drive current through a circuit. In a simple relationship, voltage, current, and resistance are connected by Ohm's law:
Voltage = Current × Resistance
A peer-reviewed electronic-cigarette coil study uses that relationship and also shows power as a function of voltage, current, and resistance.[2] This means a voltage number should not be read alone. The coil or assembly resistance and the device's power-control logic are part of the same electrical picture.
For a buyer, the key point is plain: a voltage level names an electrical input. The real product result comes from the complete system.

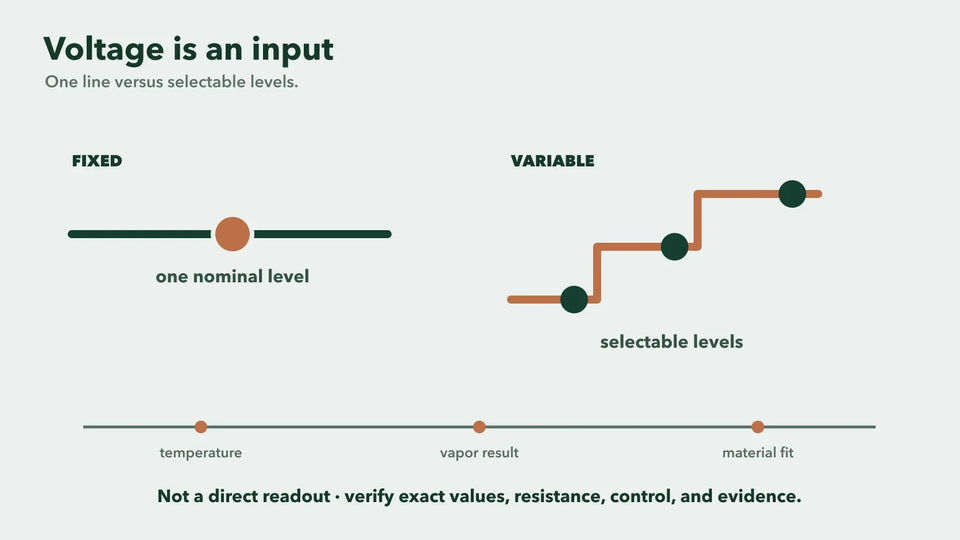

Fixed voltage versus variable voltage
The difference can be explained without ranking one design above the other.
Fixed voltage means the device is designed around one nominal voltage behavior and has no user-selectable set of levels.[1] That definition does not prove the design is better, worse, or matched to every material.
Variable voltage means the device provides more than one selectable level.[1] The extra levels do not prove better flavor, vapor, compatibility, battery life, quality, or safety.
This is a structure and control difference. Which feature is appropriate depends on the buyer's product requirements, exact hardware, resistance, material, documentation, and test evidence.
More choices are not automatically better. A three-level product is not proven superior to a one-level product merely because it has two additional labels. Each level still needs a defined voltage value and evidence for the exact system.
Volts and degrees measure different things
Voltage and temperature use different units and measure different things:
- Voltage is an electrical quantity measured in volts.
- Temperature is a thermal quantity measured with a temperature scale such as degrees Celsius or Fahrenheit.
Selecting a voltage can affect electrical power when read with resistance, but that does not turn the voltage number into a direct coil-temperature reading. The path from electrical input to thermal behavior also involves coil material, geometry, heat transfer, airflow, the material around the coil, control timing, and other product conditions.[2]
Therefore, public wording such as “this voltage equals this temperature” is too broad unless a product-specific system directly measures and validates that relationship under defined conditions. A voltage label alone cannot do it.
Why voltage is not vapor output
The same boundary applies to vapor output. Voltage is one input, while observed output depends on more than one input. The peer-reviewed source describes how voltage, current, resistance, power-control behavior, heat transfer, airflow, and material properties form a connected system.[2]
That is why “higher voltage equals more vapor” is not a safe universal claim. Two comparisons may use different resistance values, coil geometries, controls, airflow paths, materials, or measurement methods. If those variables change together, voltage alone cannot be named as the complete cause.
Product-specific testing may show a measured difference between defined levels for one exact system. That result should be reported with its test conditions. It should not be converted into a promise for every product described as variable voltage.
Four records that give voltage context
A variable-voltage feature becomes decision-ready only when the surrounding information is clear.
1. Exact voltage values
Ask for the actual values, not only color names, level numbers, or terms such as low, medium, and high. Those labels are not universal units. “Level 2” on one product does not have to equal “Level 2” on another.
The documentation should also identify whether the stated number is nominal, measured, or controlled within a defined range. If the product's behavior changes as the battery discharges or under load, the maker should explain the relevant boundary for the specific battery.
2. Exact resistance values
Voltage and resistance need to be read together. A selected voltage applied across different resistance values can correspond to different current and power relationships.[2]
Do not assume that every cartridge attached to the same battery has the same resistance. Ask which cartridge or coil assembly was evaluated, what resistance value or tolerance applied, and how it was measured.
3. Device control method
The power-control unit can influence how electrical power is delivered over time. The peer-reviewed study notes that designs may control time duration, current, or voltage in different ways.[2]
A buyer does not need to design the circuit. The useful record explains what the device controls and how the supplier verifies each labeled level. Without that record, the voltage label is incomplete.
4. Evidence to request from the supplier
Every voltage level should be judged using actual test evidence for the proposed hardware and material. The record should identify:
- the exact battery, cartridge, and revision;
- the voltage level and measured electrical values;
- the coil or assembly resistance;
- the material and relevant product conditions;
- the outputs or acceptance criteria measured; and
- the sample and test method used.
Without this detail, “tested” may describe a different product or an uncontrolled comparison.
Claims left open by the feature name
The feature name does not independently prove:
- a specific coil temperature;
- a specific vapor amount;
- compatibility with every oil or material;
- the correct setting for every cartridge;
- better flavor or product performance;
- longer battery life;
- better supplier quality or reliability;
- regulatory compliance; or
- greater safety.
Several of these claims are common because the feature is easy to describe in marketing language. But the existence of multiple voltage levels is not evidence for the outcome. The claim and the evidence must match.
For example, “offers three voltage levels” can be checked from the exact product documentation. “Fits all oils” is a much broader compatibility claim involving material properties, coil, airflow, hardware construction, and test conditions. The first statement cannot prove the second.
Compare two product records
Write one record for each product. Use the same labels in both records:
- stated voltage levels;
- coil or assembly resistance used in testing;
- device control behavior;
- material and test conditions;
- measured results and acceptance criteria; and
- test method, sample count, and product revision.
The table should not end with “more levels wins.” It should end with a decision about whether the evidence matches the buyer's product requirements.
Results are not a controlled voltage comparison when materials, resistance values, or acceptance criteria differ. Record each difference. Do not hide it behind one feature label.
Six questions for the supplier
After seeing “variable voltage” in a specification, ask:
- What are the exact voltage values for every level?
- What resistance value or range was used to validate each level?
- Which exact cartridge, battery revision, and material were tested?
- What did the test measure, and what acceptance criteria were used?[1]
- Were the other relevant variables held constant when the voltage levels were compared?
- What evidence supports the proposed match for this buyer's product?
These questions avoid both extremes: they do not treat voltage as meaningless, and they do not treat it as a complete performance promise.
Buyer questions
Does a higher voltage number mean a higher fixed temperature?
No. Voltage and temperature are different quantities. The temperature reached in a product system also depends on resistance, coil design, material, control timing, airflow, heat transfer, and other conditions.[2]
Do more voltage levels mean the hardware fits more oils?
No. Multiple levels do not prove universal material compatibility.[1] Oil fit is a product-specific question that needs the actual hardware, material, resistance, filling conditions, and test result.
Is variable voltage safer than fixed voltage?
The feature name cannot prove that. A safety conclusion would need evidence for the complete product and the exact claim; it cannot be inferred from the number of selectable levels.[1]
What should a buyer compare first?
First write down each tested voltage and its resistance. Add the control method, product revision, material, test method, result, and acceptance criteria. If any item is missing, ask the supplier to complete the record.
Practical rule for buyers
Variable voltage means a device offers more than one selectable voltage level.[1] It is a control feature, not a direct temperature or vapor readout and not proof of universal material compatibility, performance, quality, or safety.[1]
Compare voltage values with resistance, device control information, documentation, and product-specific test data. Judge every level from evidence for the actual hardware and material. Do not judge it from the feature name alone.
Keep the record specific enough for another reviewer to repeat the decision. Name the battery and cartridge revision, material, resistance, voltage, and test method. Record what changed and what stayed constant.
If a component or test condition changes, the old result remains evidence for the old system. Check the new combination before carrying the conclusion forward. This keeps a feature label from borrowing evidence from a different product.
References
- GreenDeagle editorial hardware review, August 16, 2026. This note supports the article's conservative feature-definition and evidence boundaries; it does not establish product-specific compatibility, performance, quality, safety, or regulatory outcomes. GreenDeagle.
- Qutaiba M. Saleh and Edward C. Hensel, Method for Quantifying Variation in the Resistance of Electronic Cigarette Coils, International Journal of Environmental Research and Public Health, 2020;17(21):7779.
